SWPA8040S470MT

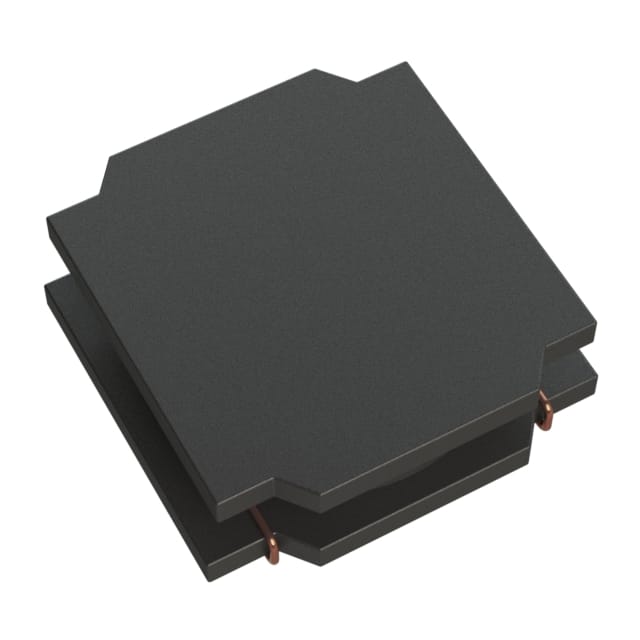

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

SWPA8040S470MT

Manufacturer
Shenzhen Sunlord Electronics Co., Ltd.
Manufacturer Product Number
SWPA8040S470MT
Description
FIXED IND 47UH 1.55A 177MOHM SMD
Product Status
Active
Detailed Description
47 µH Shielded Drum Core, Wirewound Inductor 1.55 A 177mOhm Max Nonstandard
Datasheet
SWPA8040S470MT Datasheet
EDA/CAD Models
SWPA8040S470MT Models

Product Attributes

Current - Saturation (Isat) 1.75A
Current Rating (Amps) 1.55 A
DC Resistance (DCR) 177mOhm Max
Features -
Frequency - Self Resonant 6.4MHz
Height - Seated (Max) 0.165" (4.20mm)
Inductance 47 µH
Inductance Frequency - Test 100 kHz
Material - Core Ferrite
Mfr Shenzhen Sunlord Electronics Co., Ltd.
Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C
Package Tape & Reel (TR)
Package / Case Nonstandard
Product Status Active
Q @ Freq -
Ratings -
Series SWPA
Shielding Shielded
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Supplier Device Package -
Tolerance ±20%
Type Drum Core, Wirewound
Description Shipping Reviews (2)

47 µH Shielded Drum Core, Wirewound Inductor 1.55 A 177mOhm Max Nonstandard
