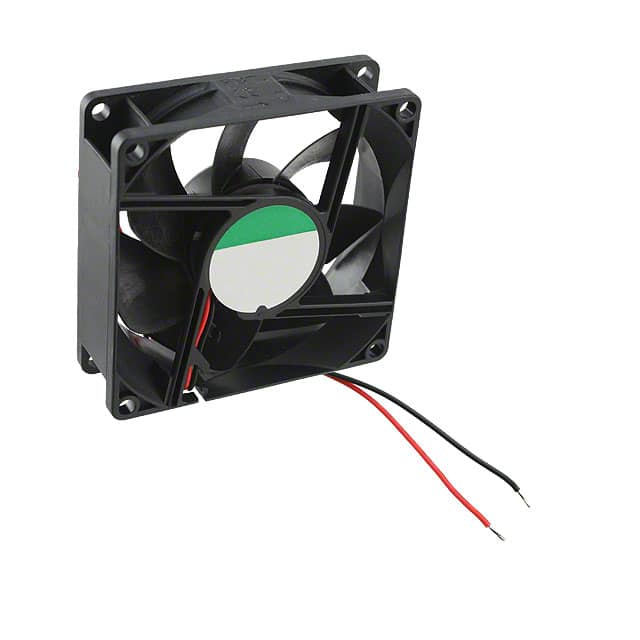

EE80252S1-000U-A99

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

EE80252S1-000U-A99

Manufacturer
Sunon Fans
Manufacturer Product Number
EE80252S1-000U-A99
Description
FAN AXIAL 80X25MM 24VDC WIRE
Product Status
Active
Detailed Description
Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Sleeve 41.0 CFM (1.15m³/min) 2 Wire Leads
Datasheet
EE80252S1-000U-A99 Datasheet
EDA/CAD Models
EE80252S1-000U-A99 Models

Product Attributes

Air Flow 41.0 CFM (1.15m³/min)
Approval Agency CUR, TUV, UL
Bearing Type Sleeve
Current Rating (Amps) 0.073A
Fan Type Tubeaxial
Features Auto Restart
Ingress Protection -
Lifetime @ Temp. 50000 Hrs @ 40°C
Material - Blade Polybutylene Terephthalate (PBT)
Material - Frame Polybutylene Terephthalate (PBT)
Mfr Sunon Fans
Noise 33.0dB(A)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Package Tray
Power (Watts) 1.8 W
Product Status Obsolete
RPM 3200 RPM
Series EE
Size / Dimension Square - 80mm L x 80mm H
Static Pressure 0.180 in H2O (44.8 Pa)
Termination 2 Wire Leads
Voltage - Rated 24VDC
Voltage Range 10 ~ 27.6VDC
Weight 0.165 lb (74.84 g)
Width 25.00mm
Description Shipping Reviews (2)

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Sleeve 41.0 CFM (1.15m³/min) 2 Wire Leads
