Integrated Circuit Key Solutions
EEC0251B3-000U-A99

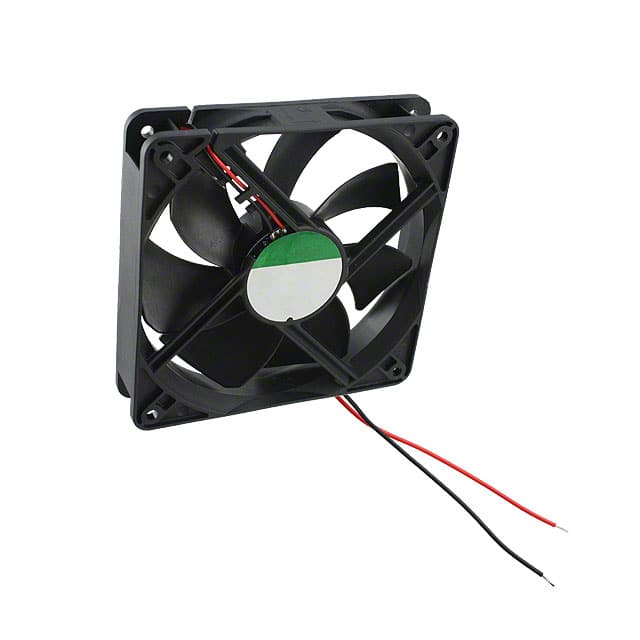

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

EEC0251B3-000U-A99

Manufacturer
Sunon Fans
Manufacturer Product Number
EEC0251B3-000U-A99
Description
FAN AXIAL 120X25MM 12VDC WIRE
Product Status
Active
Detailed Description
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 75.0 CFM (2.10m³/min) 2 Wire Leads
Datasheet
EEC0251B3-000U-A99 Datasheet
EDA/CAD Models
EEC0251B3-000U-A99 Models

Product Attributes

Air Flow 75.0 CFM (2.10m³/min)
Approval Agency CE, CUR, TUV, UL
Base Product Number EEC0251B3
Bearing Type Ball
Current Rating (Amps) 0.161A
Fan Type Tubeaxial
Features Auto Restart
Ingress Protection -
Lifetime @ Temp. 70000 Hrs @ 40°C
Material - Blade Polybutylene Terephthalate (PBT)
Material - Frame Polybutylene Terephthalate (PBT)
Mfr Sunon Fans
Noise 34.0dB(A)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Package Bulk
Power (Watts) 1.9 W
Product Status Active
RPM 2200 RPM
Series EEC
Size / Dimension Square - 120mm L x 120mm H
Static Pressure 0.160 in H2O (39.8 Pa)
Termination 2 Wire Leads
Voltage - Rated 12VDC
Voltage Range 6 ~ 13.8VDC
Weight 0.346 lb (156.94 g)
Width 25.00mm
Description Shipping Reviews (2)

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 75.0 CFM (2.10m³/min) 2 Wire Leads
