ME92252V1-000U-A99

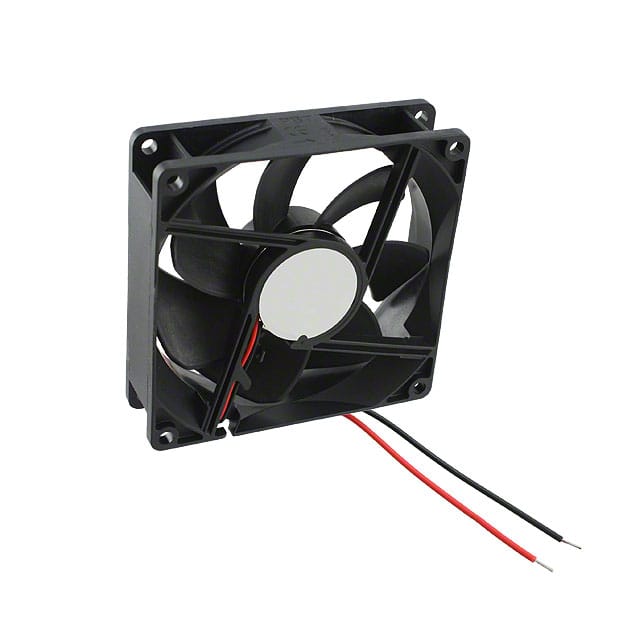

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ME92252V1-000U-A99

Manufacturer
Sunon Fans
Manufacturer Product Number
ME92252V1-000U-A99
Description
FAN AXIAL 92X25MM 24VDC WIRE
Product Status
Active
Detailed Description
Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Vapo-Bearing™ 51.5 CFM (1.44m³/min) 2 Wire Leads
Datasheet
ME92252V1-000U-A99 Datasheet
EDA/CAD Models
ME92252V1-000U-A99 Models

Product Attributes

Air Flow 51.5 CFM (1.44m³/min)
Approval Agency CUR, TUV, UL
Bearing Type Vapo-Bearing™
Current Rating (Amps) 0.087A
Fan Type Tubeaxial
Features Auto Restart
Ingress Protection -
Lifetime @ Temp. 70000 Hrs @ 40°C
Material - Blade Polybutylene Terephthalate (PBT)
Material - Frame Polybutylene Terephthalate (PBT)
Mfr Sunon Fans
Noise 34.0dB(A)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Package Bulk
Power (Watts) 2.1 W
Product Status Obsolete
RPM 3000 RPM
Series MagLev® ME
Size / Dimension Square - 92mm L x 92mm H
Static Pressure 0.150 in H2O (37.4 Pa)
Termination 2 Wire Leads
Voltage - Rated 24VDC
Voltage Range 10 ~ 27.6VDC
Weight 0.207 lb (93.89 g)
Width 25.00mm
Description Shipping Reviews (2)

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Vapo-Bearing™ 51.5 CFM (1.44m³/min) 2 Wire Leads
