Integrated Circuit Key Solutions
MF40060V1-1000U-A99

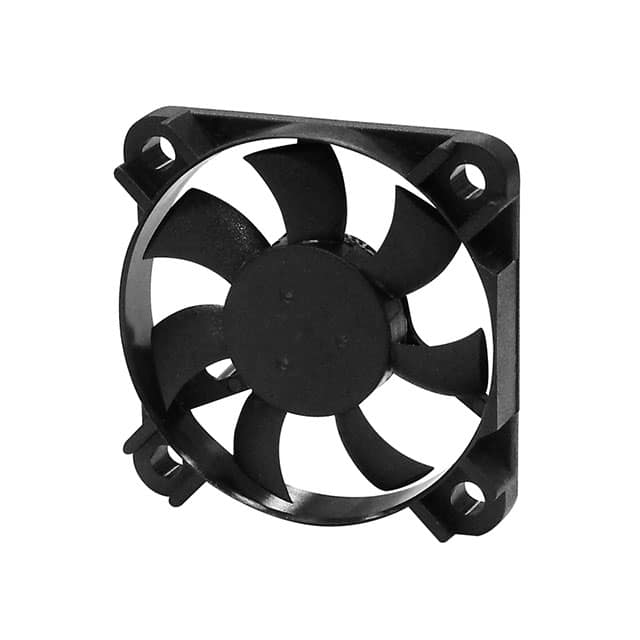

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

MF40060V1-1000U-A99

Manufacturer
Sunon Fans
Manufacturer Product Number
MF40060V1-1000U-A99
Description
FAN AXIAL 40X6.5MM 5VDC WIRE
Product Status
Active
Detailed Description
Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Vapo-Bearing™ 6.3 CFM (0.176m³/min) 2 Wire Leads
Datasheet
MF40060V1-1000U-A99 Datasheet
EDA/CAD Models
MF40060V1-1000U-A99 Models

Product Attributes

Air Flow 6.3 CFM (0.176m³/min)
Approval Agency cURus, TUV
Base Product Number MF40060V1
Bearing Type Vapo-Bearing™
Current Rating (Amps) 0.087A
Fan Type Tubeaxial
Features Auto Restart
Ingress Protection -
Lifetime @ Temp. 70000 Hrs @ 40°C
Material - Blade Polybutylene Terephthalate (PBT)
Material - Frame Polybutylene Terephthalate (PBT)
Mfr Sunon Fans
Noise 29.3dB(A)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Package Bulk
Power (Watts) 440 mW
Product Status Active
RPM 7000 RPM
Series MagLev® MF
Size / Dimension Square - 40mm L x 40mm H
Static Pressure 0.100 in H2O (24.9 Pa)
Termination 2 Wire Leads
Voltage - Rated 5VDC
Voltage Range 2.5 ~ 6VDC
Weight 0.015 lb (6.8 g)
Width 6.50mm
Description Shipping Reviews (2)

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Vapo-Bearing™ 6.3 CFM (0.176m³/min) 2 Wire Leads
