1747785-1

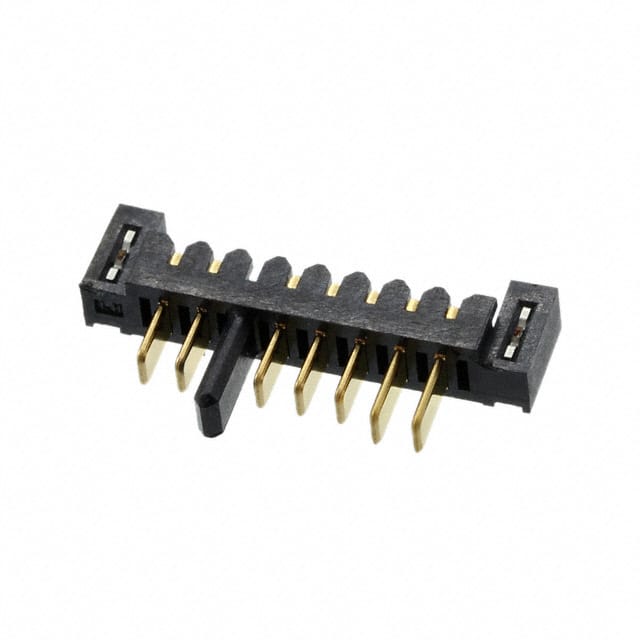

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

1747785-1

Manufacturer
TE Connectivity AMP Connectors
Manufacturer Product Number
1747785-1
Description
PACKING,PLUG ASSY. 8POS. 2MM PIT
Product Status
Active
Detailed Description
8 Position Plug, Male Blades Connector Solder 0.079" (2.00mm) Surface Mount
Datasheet
1747785-1 Datasheet
EDA/CAD Models
1747785-1 Models

Product Attributes

Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Style Battery
Connector Type Plug, Male Blades
Number of Positions 8
Pitch 0.079" (2.00mm)
Mounting Type Surface Mount
Number of Rows 1
Termination Solder
Wire Gauge -
Features Board Guide, Flange
Color Black
Fastening Type Push-Pull
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 11.8µin (0.30µm)
Material - Insulation Polyamide (PA6T), Nylon 6T
Operating Temperature -
Base Product Number 1747785
Description Shipping Reviews (2)

8 Position Plug, Male Blades Connector Solder 0.079" (2.00mm) Surface Mount
