07-1-2-17

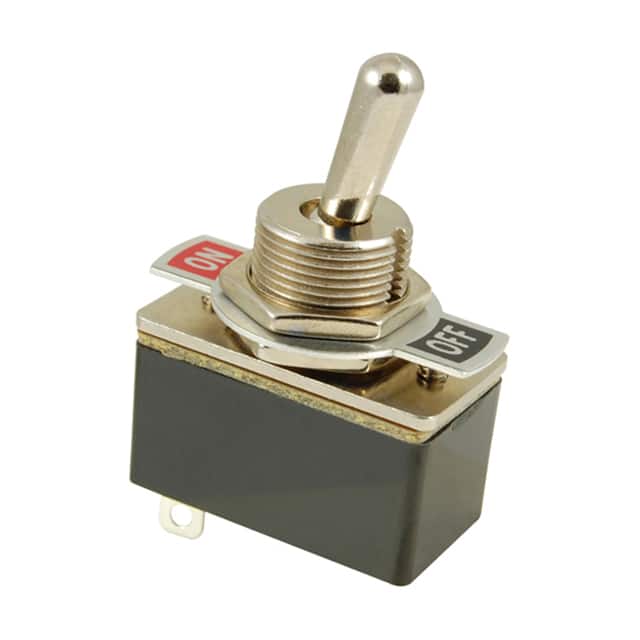

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

07-1-2-17

Manufacturer
TE - Kissling
Manufacturer Product Number
07-1-2-17
Description
TOGGLE SWITCHES, SINGLE POLE - D
Product Status
Active
Detailed Description
Toggle Switch SPDT Panel Mount
Datasheet
07-1-2-17 Datasheet
EDA/CAD Models
07-1-2-17 Models

Product Attributes

Mfr TE - Kissling
Series 07
Package Box
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 15A (AC/DC)
Voltage Rating - AC 115 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length -
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread M12 x 0.75
Ingress Protection IP65 - Dust Tight, Water Resistant
Features -
Operating Temperature -35°C ~ 60°C
Actuator Material -
Electrical Life 100,000 Cycles
Base Product Number 07
Description Shipping Reviews (2)

Toggle Switch SPDT Panel Mount
