NRS6045T1R0NMGK

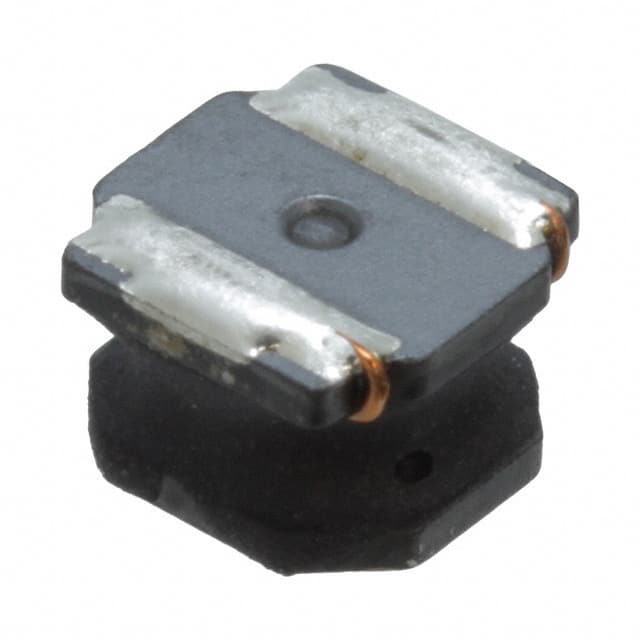

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

NRS6045T1R0NMGK

Manufacturer
Taiyo Yuden
Manufacturer Product Number
NRS6045T1R0NMGK
Description
FIXED IND 1UH 4.5A 18.2 MOHM SMD
Product Status
Active
Detailed Description
1 µH Shielded Drum Core, Wirewound Inductor 4.5 A 18.2mOhm Max Nonstandard
Datasheet
NRS6045T1R0NMGK Datasheet
EDA/CAD Models
NRS6045T1R0NMGK Models

Product Attributes

Current - Saturation (Isat) 9.8A
Current Rating (Amps) 4.5 A
DC Resistance (DCR) 18.2mOhm Max
Frequency - Self Resonant 110MHz
Height - Seated (Max) 0.177" (4.50mm)
Inductance 1 µH
Inductance Frequency - Test 100 kHz
Material - Core Ferrite
Mfr Taiyo Yuden
Mounting Type Surface Mount
Operating Temperature -25°C ~ 125°C
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Package / Case Nonstandard
Product Status Active
Q @ Freq -
Ratings -
Series NR, S Type
Shielding Shielded
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Supplier Device Package -
Tolerance ±30%
Type Drum Core, Wirewound
Description Shipping Reviews (2)

1 µH Shielded Drum Core, Wirewound Inductor 4.5 A 18.2mOhm Max Nonstandard
