HHXD630ARA100MF80G

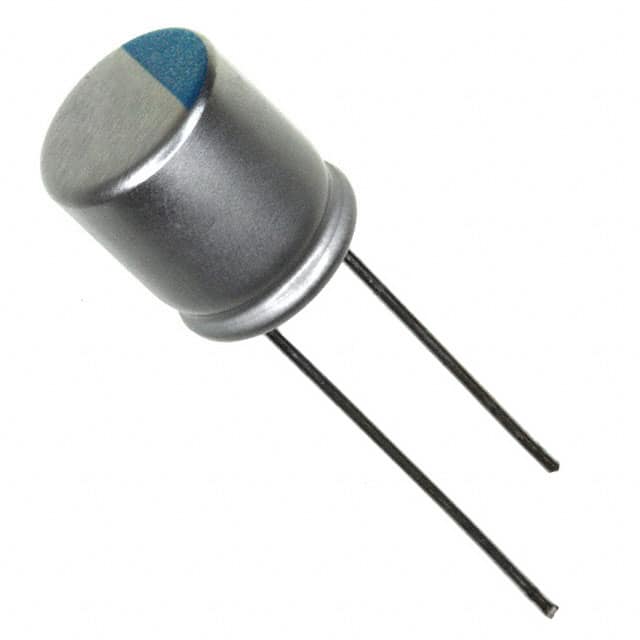

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

HHXD630ARA100MF80G

Manufacturer
United Chemi-Con
Manufacturer Product Number
HHXD630ARA100MF80G
Description
CAP ALUM POLY HYB 10UF 63V SMD
Product Status
Active
Detailed Description
10 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 80mOhm 5000 Hrs @ 105°C
Datasheet
HHXD630ARA100MF80G Datasheet
EDA/CAD Models
HHXD630ARA100MF80G Models

Product Attributes

Applications Automotive
Capacitance 10 µF
ESR (Equivalent Series Resistance) 80mOhm
Height - Seated (Max) 0.315" (8.00mm)
Lead Spacing -
Lifetime @ Temp. 5000 Hrs @ 105°C
Mfr United Chemi-Con
Mounting Type Surface Mount
Operating Temperature -55°C ~ 105°C
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Package / Case Radial, Can - SMD
Product Status Active
Ratings AEC-Q200
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Ripple Current @ Low Frequency 45 mA @ 120 Hz
Series HXD
Size / Dimension 0.248" Dia (6.30mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Tolerance ±20%
Type Hybrid
Voltage - Rated 63 V
Description Shipping Reviews (2)

10 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 80mOhm 5000 Hrs @ 105°C
