Integrated Circuit Key Solutions
2601-1107

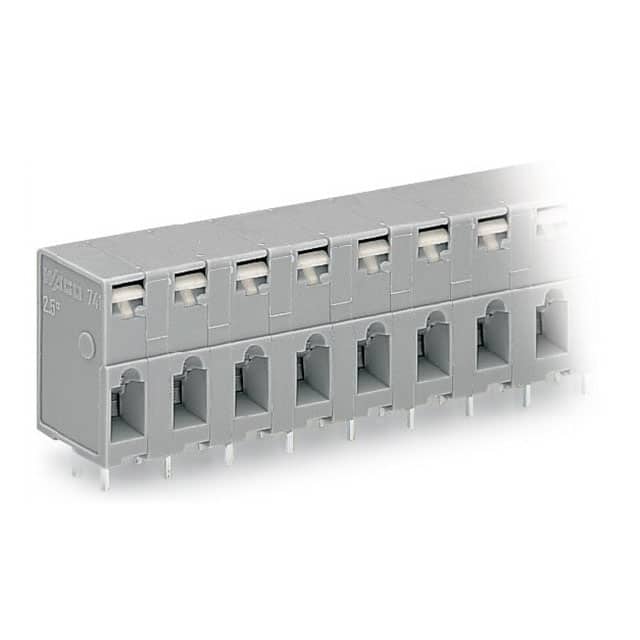

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

2601-1107

Manufacturer
WAGO Corporation
Manufacturer Product Number
2601-1107
Description
TERM BLK PCB LEVER 3.5MM 7POS
Product Status
Active
Detailed Description
7 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
Datasheet
2601-1107 Datasheet
EDA/CAD Models
2601-1107 Models

Product Attributes

Mfr WAGO Corporation
Series -
Package Box
Product Status Active
Number of Levels 1
Positions Per Level 7
Pitch 0.138" (3.50mm)
Mating Orientation Horizontal with Board
Current 10 A
Voltage 300 V
Wire Gauge 16-26 AWG
Mounting Type Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Features Lever Actuated
Color Gray
Operating Temperature -60°C ~ 105°C
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material - Plating Electrolytic Copper - Tin Plated
Clamp Material - Plating Steel - Nickel Plated
Screw Material - Plating -
Torque - Screw -
Screw Thread -
Description Shipping Reviews (2)

7 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
