DC0501512L2B-3T0

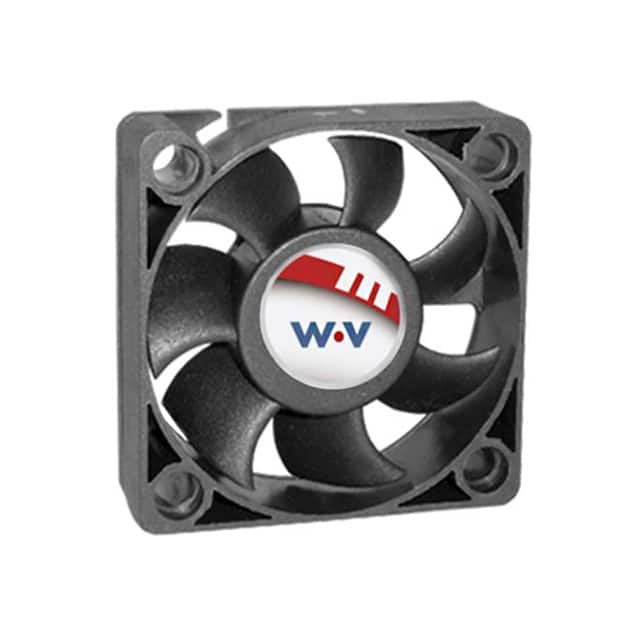

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

DC0501512L2B-3T0

Manufacturer
Wakefield-Vette
Manufacturer Product Number
DC0501512L2B-3T0
Description
FAN AXIAL 50X15MM 12VDC WIRE
Product Status
Active
Detailed Description
Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 12.2 CFM (0.342m³/min) 3 Wire Leads
Datasheet
DC0501512L2B-3T0 Datasheet
EDA/CAD Models
DC0501512L2B-3T0 Models

Product Attributes

Air Flow 12.2 CFM (0.342m³/min)
Approval Agency CE, cURus, TUV
Base Product Number DC0501512
Bearing Type Ball
Current Rating (Amps) 0.070A
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Ingress Protection -
Lifetime @ Temp. 70000 Hrs @ 40°C
Material - Blade Polybutylene Terephthalate (PBT), Glass Filled
Material - Frame Polybutylene Terephthalate (PBT), Glass Filled
Mfr Wakefield-Vette
Noise 27.0dB(A)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Package Box
Power (Watts) 840 mW
Product Status Active
RPM 4200 RPM
Series -
Size / Dimension Square - 50mm L x 50mm H
Static Pressure 0.120 in H2O (29.9 Pa)
Termination 3 Wire Leads
Voltage - Rated 12VDC
Voltage Range -
Weight 0.084 lb (38.1 g)
Width 15.00mm
Description Shipping Reviews (2)

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 12.2 CFM (0.342m³/min) 3 Wire Leads
