DC0601512M2B-3T0

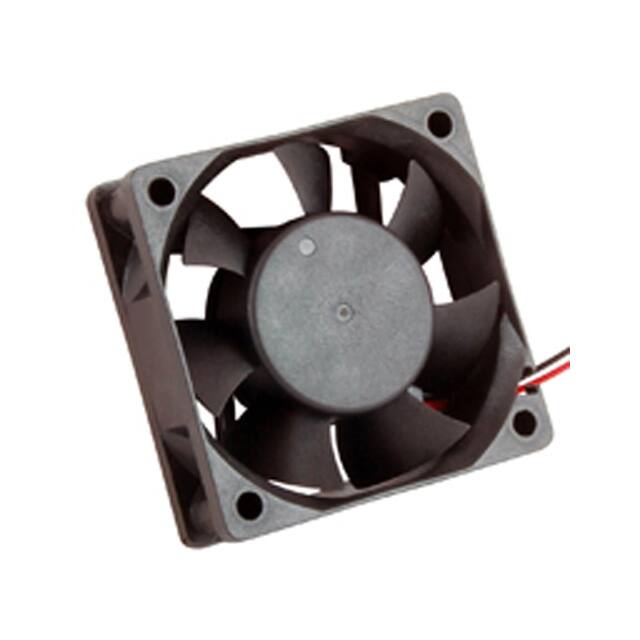

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

DC0601512M2B-3T0

Manufacturer
Wakefield-Vette
Manufacturer Product Number
DC0601512M2B-3T0
Description
FAN AXIAL 60X15MM 12VDC WIRE
Product Status
Active
Detailed Description
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 21.7 CFM (0.608m³/min) 3 Wire Leads
Datasheet
DC0601512M2B-3T0 Datasheet
EDA/CAD Models
DC0601512M2B-3T0 Models

Product Attributes

Air Flow 21.7 CFM (0.608m³/min)
Approval Agency CE, cURus, TUV
Base Product Number DC0601512
Bearing Type Ball
Current Rating (Amps) 0.100A
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Ingress Protection -
Lifetime @ Temp. 70000 Hrs @ 40°C
Material - Blade Polybutylene Terephthalate (PBT), Glass Filled
Material - Frame Polybutylene Terephthalate (PBT), Glass Filled
Mfr Wakefield-Vette
Noise 32.0dB(A)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Package Box
Power (Watts) 1.2 W
Product Status Active
RPM 4000 RPM
Series -
Size / Dimension Square - 60mm L x 60mm H
Static Pressure 0.160 in H2O (39.8 Pa)
Termination 3 Wire Leads
Voltage - Rated 12VDC
Voltage Range -
Weight 0.098 lb (44.45 g)
Width 15.00mm
Description Shipping Reviews (2)

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 21.7 CFM (0.608m³/min) 3 Wire Leads
