H11L2M

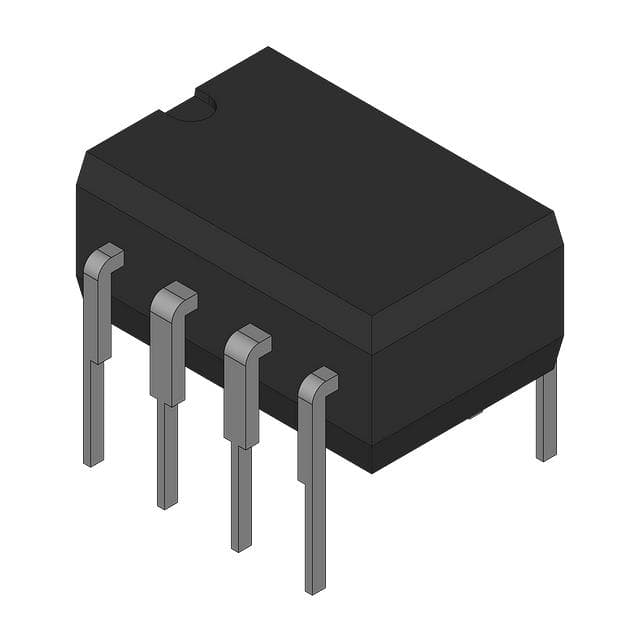

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

H11L2M

Manufacturer
Fairchild Semiconductor
Manufacturer Product Number
H11L2M
Description
LOGIC IC OUTPUT OPTOCOUPLER, 750
Product Status
Active
Detailed Description
Logic Output Optoisolator 1MHz Open Collector 5000Vrms 1 Channel CMTI 6-DIP
Datasheet
H11L2M Datasheet
EDA/CAD Models
H11L2M Models

Product Attributes

Mfr Fairchild Semiconductor
Series -
Package Bulk
Product Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) -
Input Type DC
Output Type Open Collector
Current - Output / Channel 50 mA
Data Rate 1MHz
Propagation Delay tpLH / tpHL (Max) 4µs, 4µs
Rise / Fall Time (Typ) 100ns, 100ns
Voltage - Forward (Vf) (Typ) 1.15V
Current - DC Forward (If) (Max) 60mA
Voltage - Supply 3V ~ 16V
Operating Temperature -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.400", 10.16mm)
Supplier Device Package 6-DIP
Description Shipping Reviews (2)

Logic Output Optoisolator 1MHz Open Collector 5000Vrms 1 Channel CMTI 6-DIP
