H2072Z01

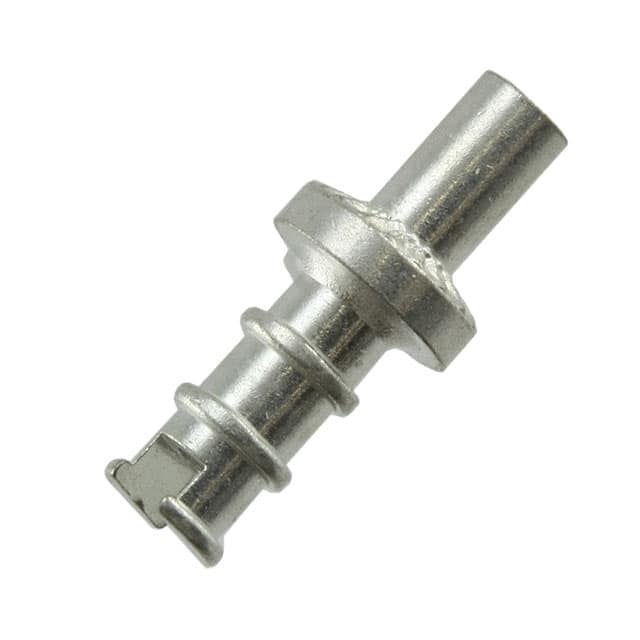

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

H2072Z01

Manufacturer
Harwin Inc.
Manufacturer Product Number
H2072Z01
Description
TERM TURRET SLOTTED L=6.52MM TIN
Product Status
Active
Detailed Description
Terminal Turret Connector Single End, Fork 0.257" (6.52mm) Tin
Datasheet
H2072Z01 Datasheet
EDA/CAD Models
H2072Z01 Models

Product Attributes

Base Product Number H2072
Board Thickness 0.063" (1.60mm)
Contact Finish Tin
Contact Finish Thickness -
Contact Material Brass Alloy
Diameter - Turret Head 0.100" (2.54mm)
Flange Diameter 0.156" (3.96mm)
Insulation Non-Insulated
Insulation Color -
Length - Above Board 0.257" (6.52mm)
Length - Below Flange 0.094" (2.39mm)
Length - Overall 0.351" (8.91mm)
Material - Insulation -
Mfr Harwin Inc.
Mounting Hole Diameter 0.079" ~ 0.083" (2.01mm ~ 2.11mm)
Mounting Type Through Hole
Number of Turrets Triple
Package Bulk
Product Status Active
Series -
Staking Side ID 0.046" ~ 0.049" (1.17mm ~ 1.24mm)
Staking Side OD 0.074" ~ 0.079" (1.87mm ~ 2.01mm)
Terminal Type Single End, Fork
Termination Swage
Description Shipping Reviews (2)

Terminal Turret Connector Single End, Fork 0.257" (6.52mm) Tin
