20525-040E-02

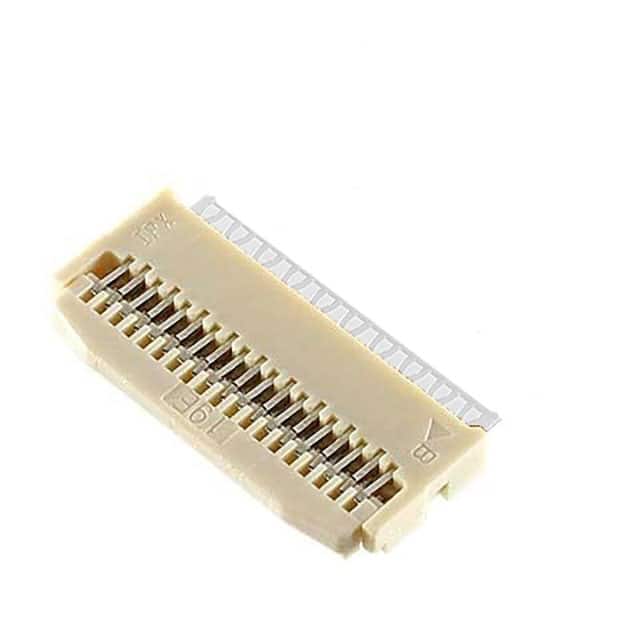

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

20525-040E-02

Manufacturer
I-PEX
Manufacturer Product Number
20525-040E-02
Description
CABLINE-CA RECEPTACLE 40P
Product Status
Active
Detailed Description
40 Position FPC Connector Contacts, Top and Bottom 0.016" (0.40mm) Surface Mount, Right Angle
Datasheet
20525-040E-02 Datasheet
EDA/CAD Models
20525-040E-02 Models

Product Attributes

Mfr I-PEX
Series CABLINE®-CA
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 40
Pitch 0.016" (0.40mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature -
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material -
Features EMI Shielded, Solder Retention
Voltage Rating 100V
Operating Temperature -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) -
Contact Finish Thickness 4.00µin (0.10µm)
Housing Color Black
Actuator Color -
Mating Cycles 30
Base Product Number 20525
Description Shipping Reviews (2)

40 Position FPC Connector Contacts, Top and Bottom 0.016" (0.40mm) Surface Mount, Right Angle
