PS9031-Y-V-AX

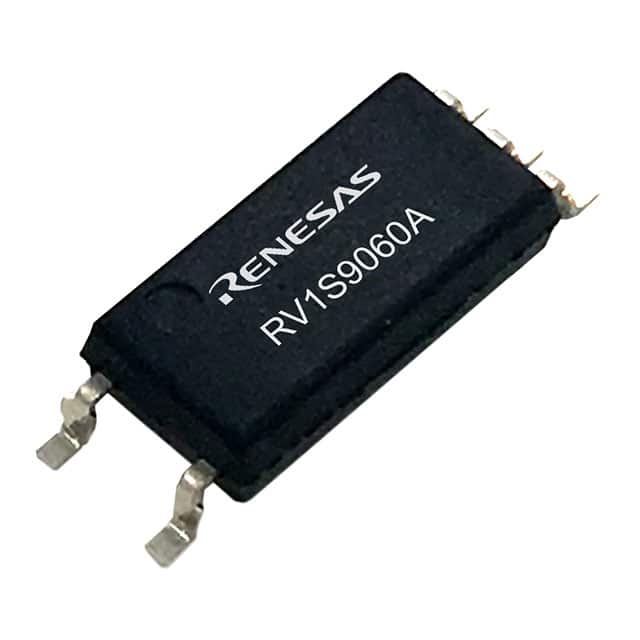

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

PS9031-Y-V-AX

Manufacturer
Renesas Electronics America Inc
Manufacturer Product Number
PS9031-Y-V-AX
Description
LSO-5
Product Status
Active
Detailed Description
2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 5-LSOP
Datasheet
PS9031-Y-V-AX Datasheet
EDA/CAD Models
PS9031-Y-V-AX Models

Product Attributes

Mfr Renesas Electronics America Inc
Series -
Package Tape & Reel (TR), Cut Tape (CT), Digi-Reel®
Product Status Active
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 50kV/µs
Propagation Delay tpLH / tpHL (Max) 175ns, 175ns
Pulse Width Distortion (Max) 75ns
Rise / Fall Time (Typ) 40ns, 40ns
Current - Output High, Low 2A, 2A
Current - Peak Output 2.5A
Voltage - Forward (Vf) (Typ) 1.56V
Current - DC Forward (If) (Max) 25 mA
Voltage - Output Supply 15V ~ 30V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.295", 7.50mm Width), 5 Leads
Supplier Device Package 5-LSOP
Approval Agency CSA, UL, VDE
Base Product Number PS9031
Description Shipping Reviews (2)

2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 5-LSOP
