H9020-01

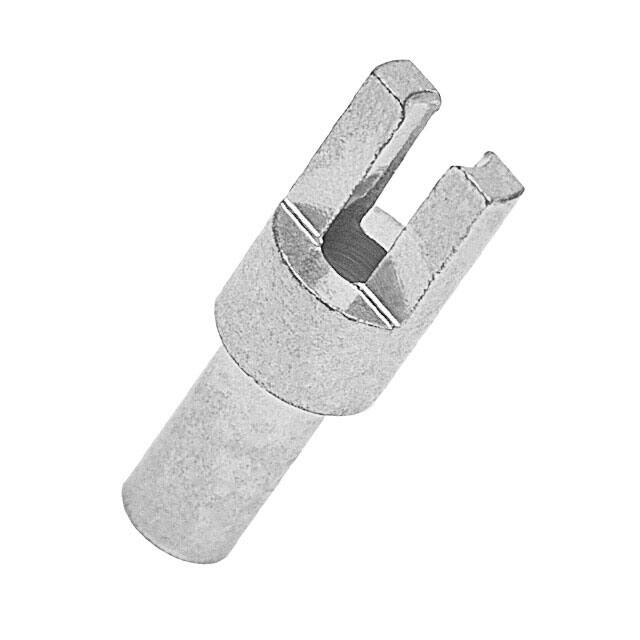

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

H9020-01

Manufacturer
Harwin Inc.
Manufacturer Product Number
H9020-01
Description
TERM TURRET SINGLE L=7.65MM TIN
Product Status
Active
Detailed Description
Terminal Turret Connector Single End 0.301" (7.65mm) Tin
Datasheet
H9020-01 Datasheet
EDA/CAD Models
H9020-01 Models

Product Attributes

Base Product Number H9020
Board Thickness 0.063" (1.60mm)
Contact Finish Tin
Contact Finish Thickness -
Contact Material Brass Alloy
Diameter - Turret Head 0.093" (2.36mm)
Flange Diameter 0.125" (3.18mm)
Insulation Non-Insulated
Insulation Color -
Length - Above Board 0.301" (7.65mm)
Length - Below Flange 0.094" (2.39mm)
Length - Overall 0.395" (10.03mm)
Material - Insulation -
Mfr Harwin Inc.
Mounting Hole Diameter 0.092" ~ 0.096" (2.34mm ~ 2.44mm)
Mounting Type Through Hole
Number of Turrets Triple
Package Bulk
Product Status Active
Series -
Staking Side ID 0.064" (1.63mm)
Staking Side OD -
Terminal Type Single End
Termination Swage
Description Shipping Reviews (2)

Terminal Turret Connector Single End 0.301" (7.65mm) Tin
